Andrew Wheat

Drawings

Selected architectural line drawings by Andrew Wheat, including sections, sectional perspectives, detail sections, elevations, and axonometric studies.

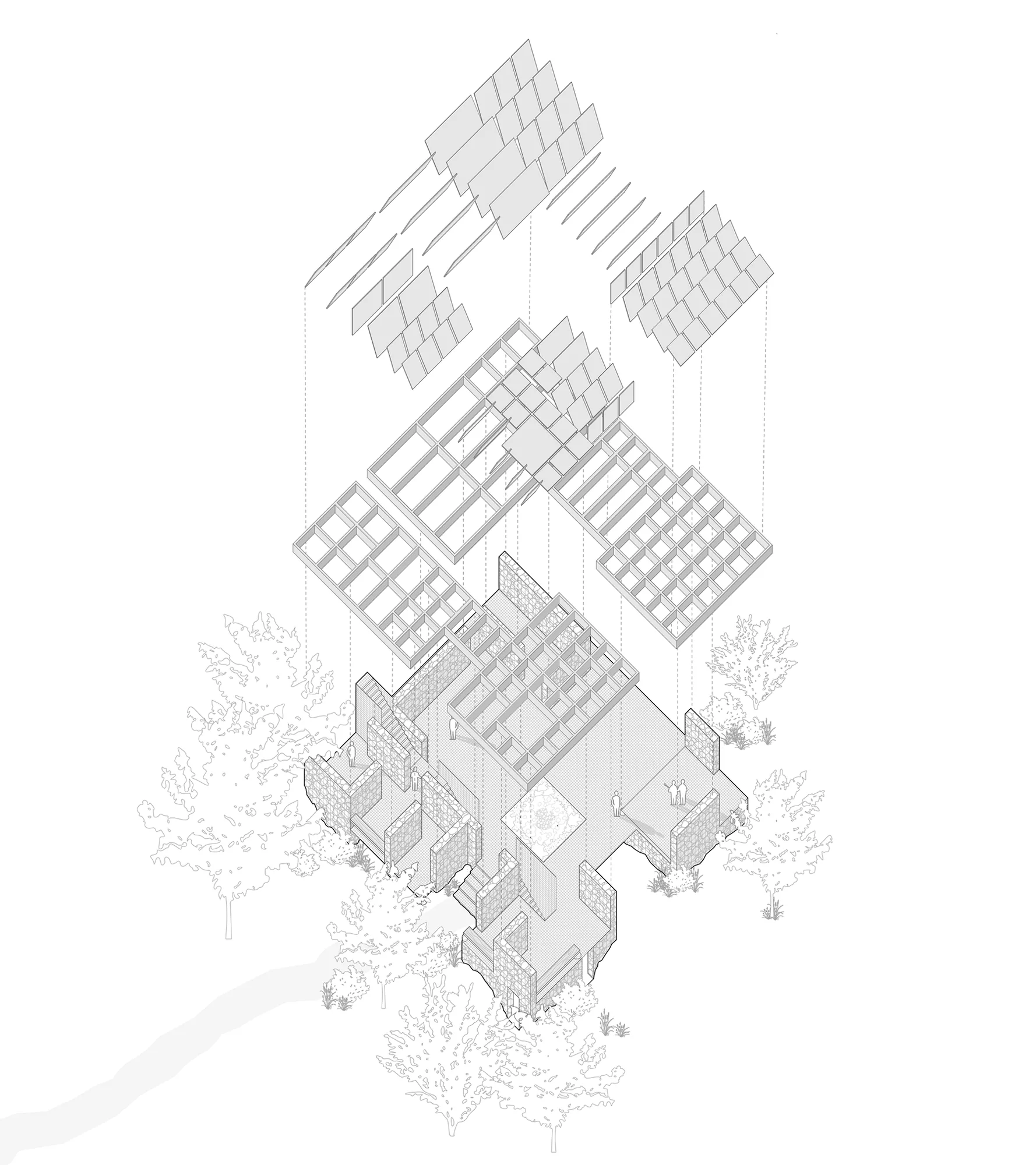

Curanto Cookhouse, Exploded Roof Axonometric by Andrew Wheat
Curanto Cookhouse, Exploded Roof Axonometric

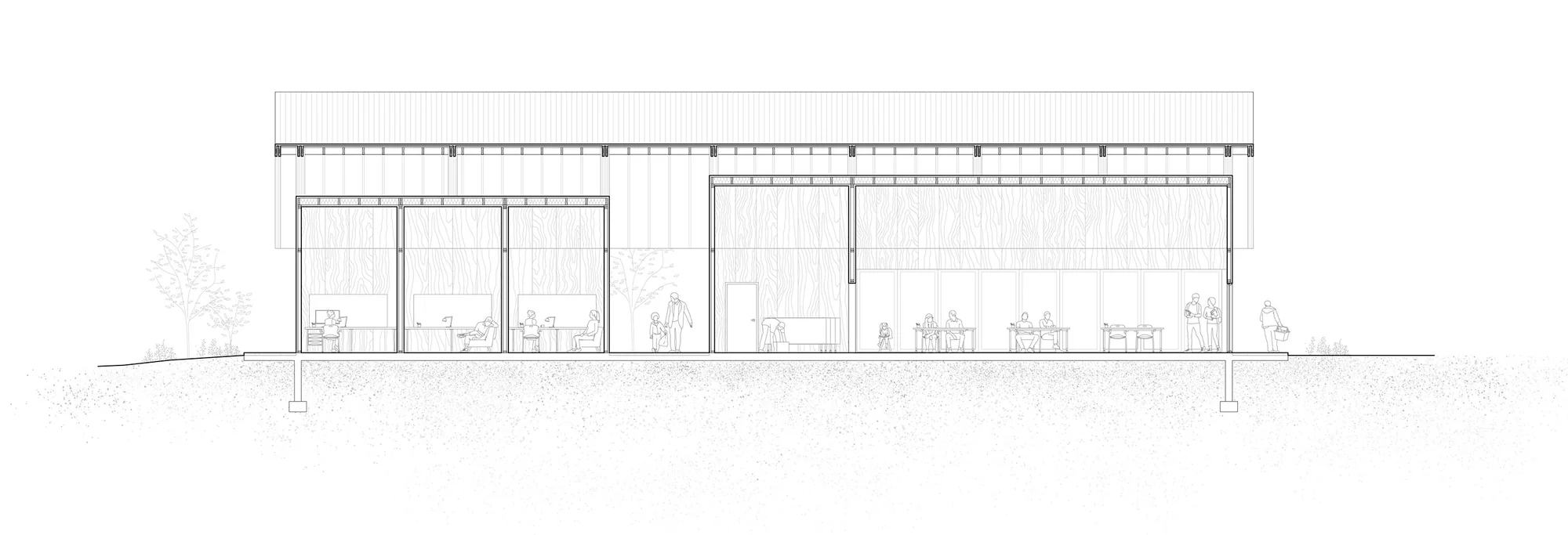

Enfield Food Pantry, Chapel Longitudinal Section by Andrew Wheat
Enfield Food Pantry, Chapel Longitudinal Section

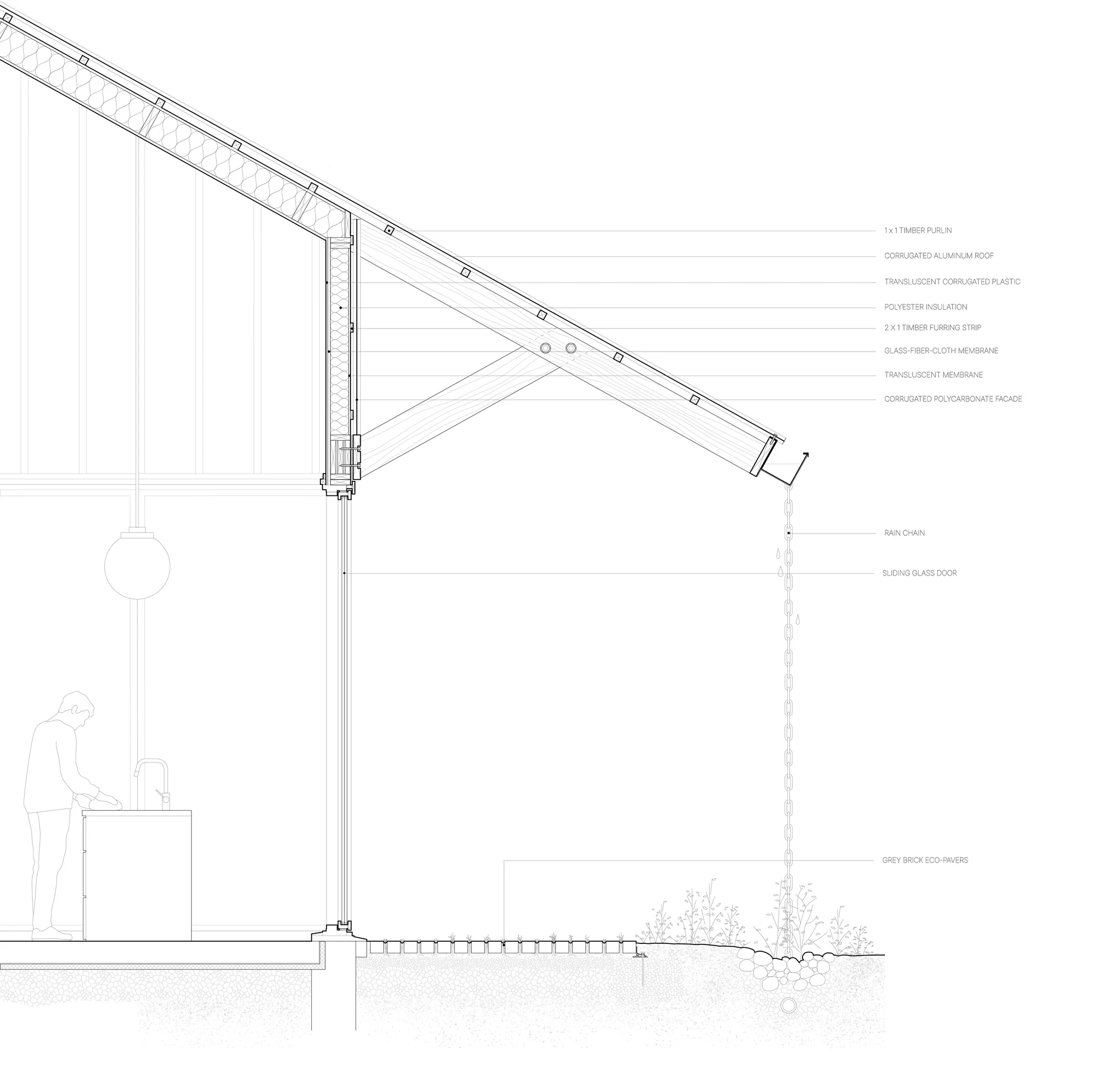

Enfield Food Pantry, Envelope Detail Section by Andrew Wheat
Enfield Food Pantry, Envelope Detail Section

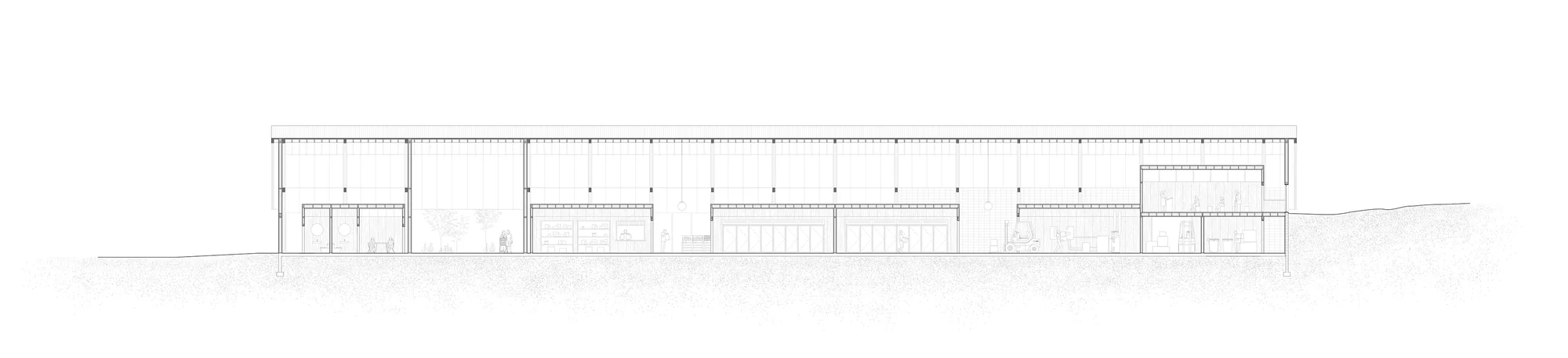

Enfield Food Pantry, Main Building Longitudinal Section by Andrew Wheat
Enfield Food Pantry, Main Building Longitudinal Section

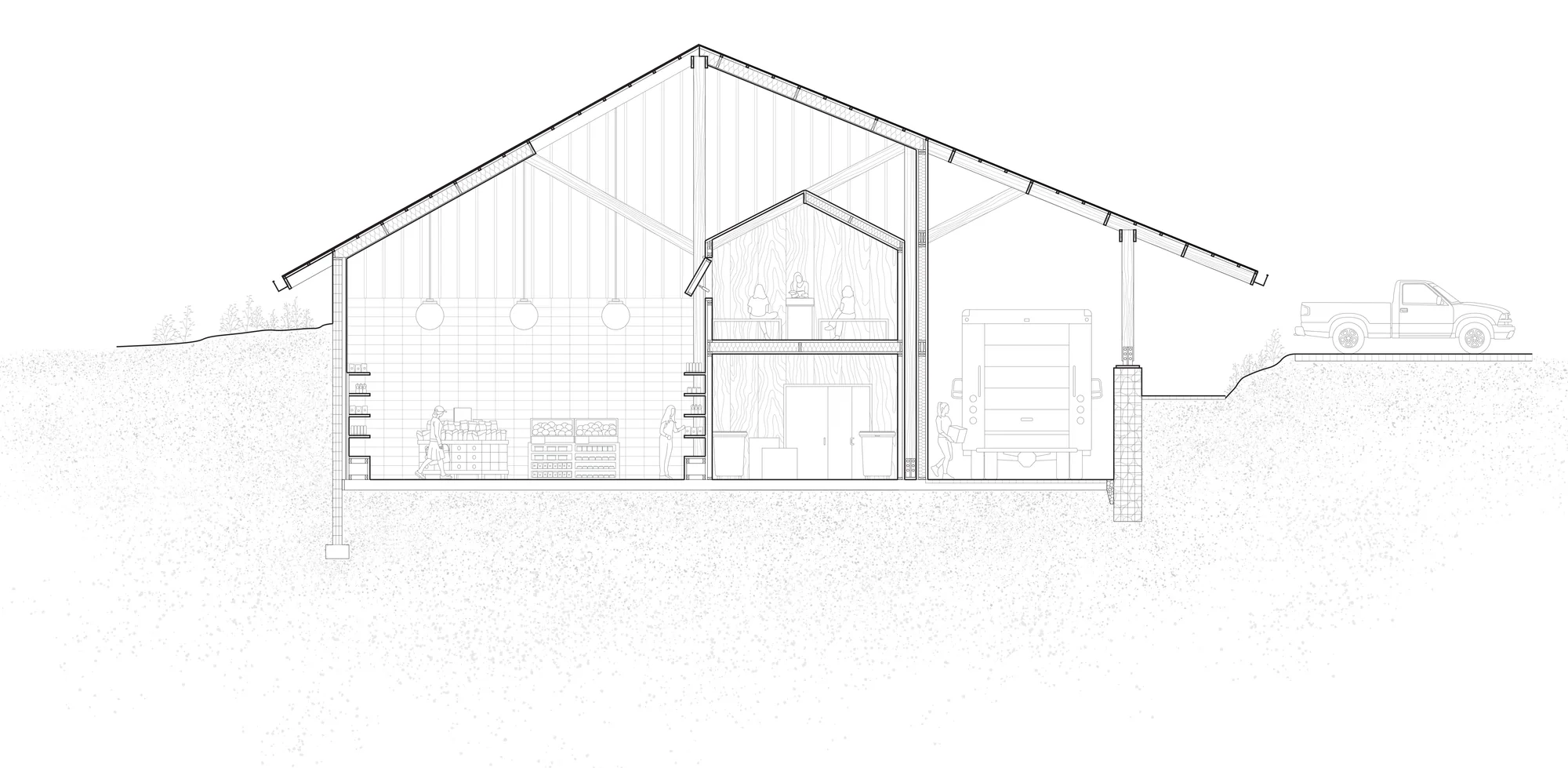

Enfield Food Pantry, Transverse Section by Andrew Wheat
Enfield Food Pantry, Transverse Section

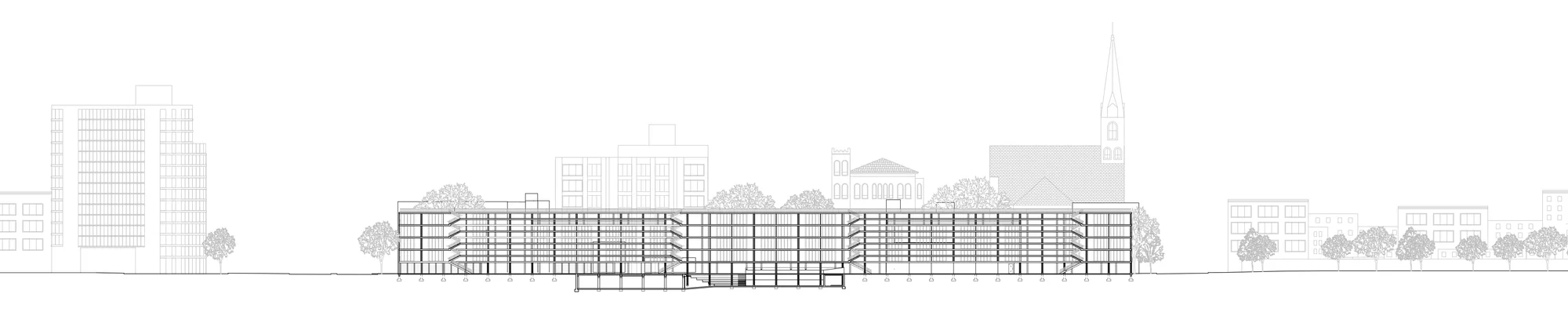

Hunter's Point Cooperative Housing, Urban Site Section by Andrew Wheat
Hunter's Point Cooperative Housing, Urban Site Section

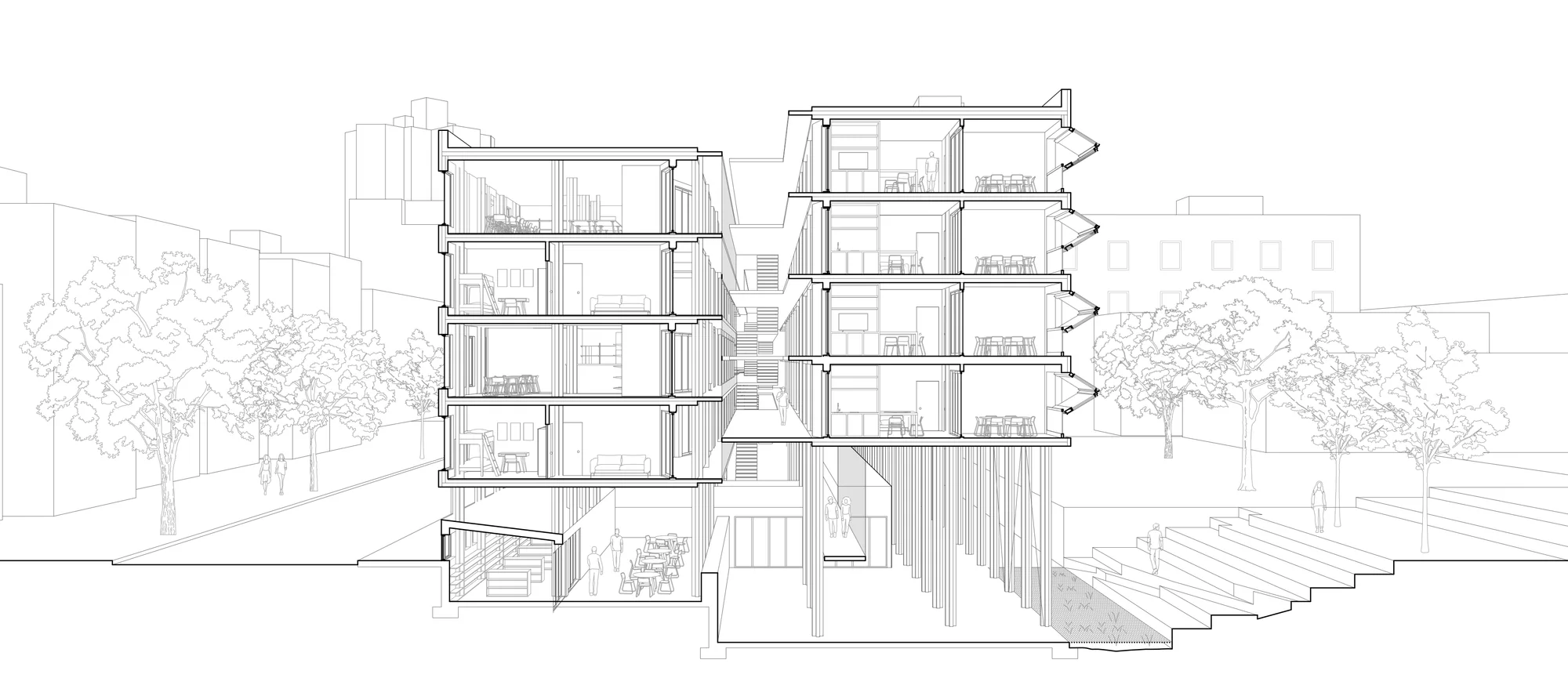

Hunter's Point Cooperative Housing, Section Perspective by Andrew Wheat
Hunter's Point Cooperative Housing, Section Perspective

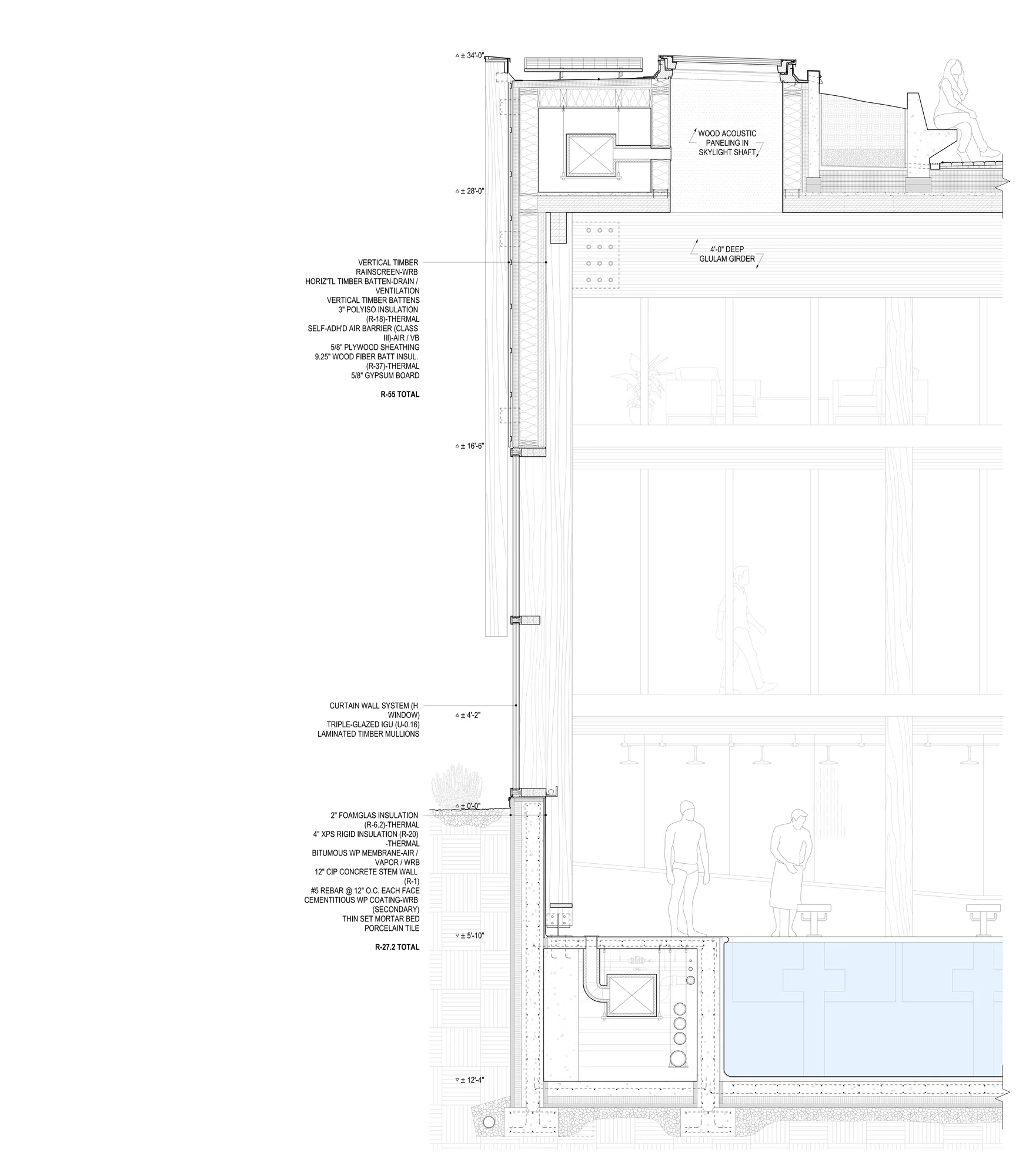

Wood Street Pool, Envelope and Pool-Edge Detail Section by Andrew Wheat
Wood Street Pool, Envelope and Pool-Edge Detail Section

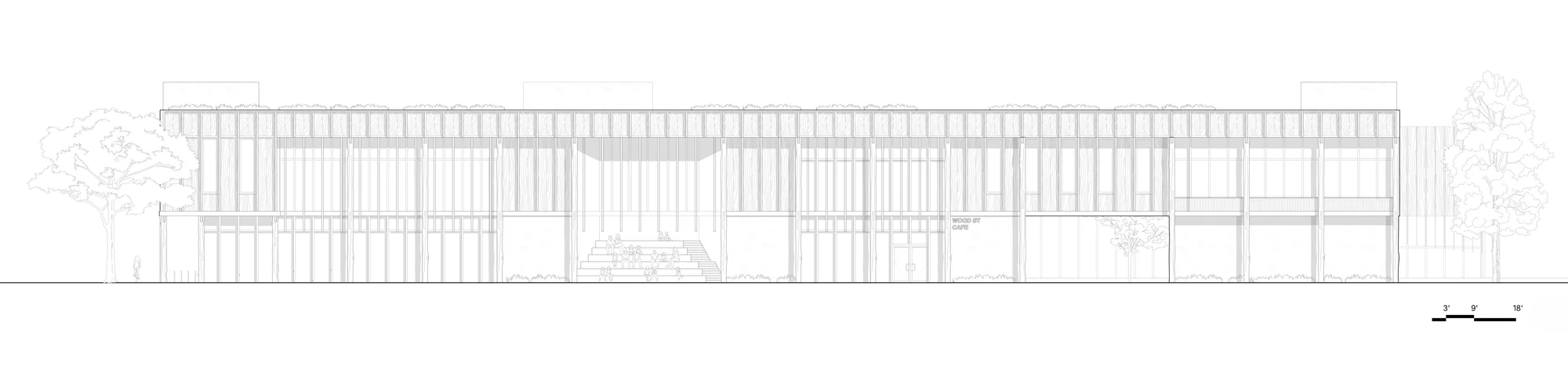

Wood Street Pool, Long Elevation by Andrew Wheat
Wood Street Pool, Long Elevation

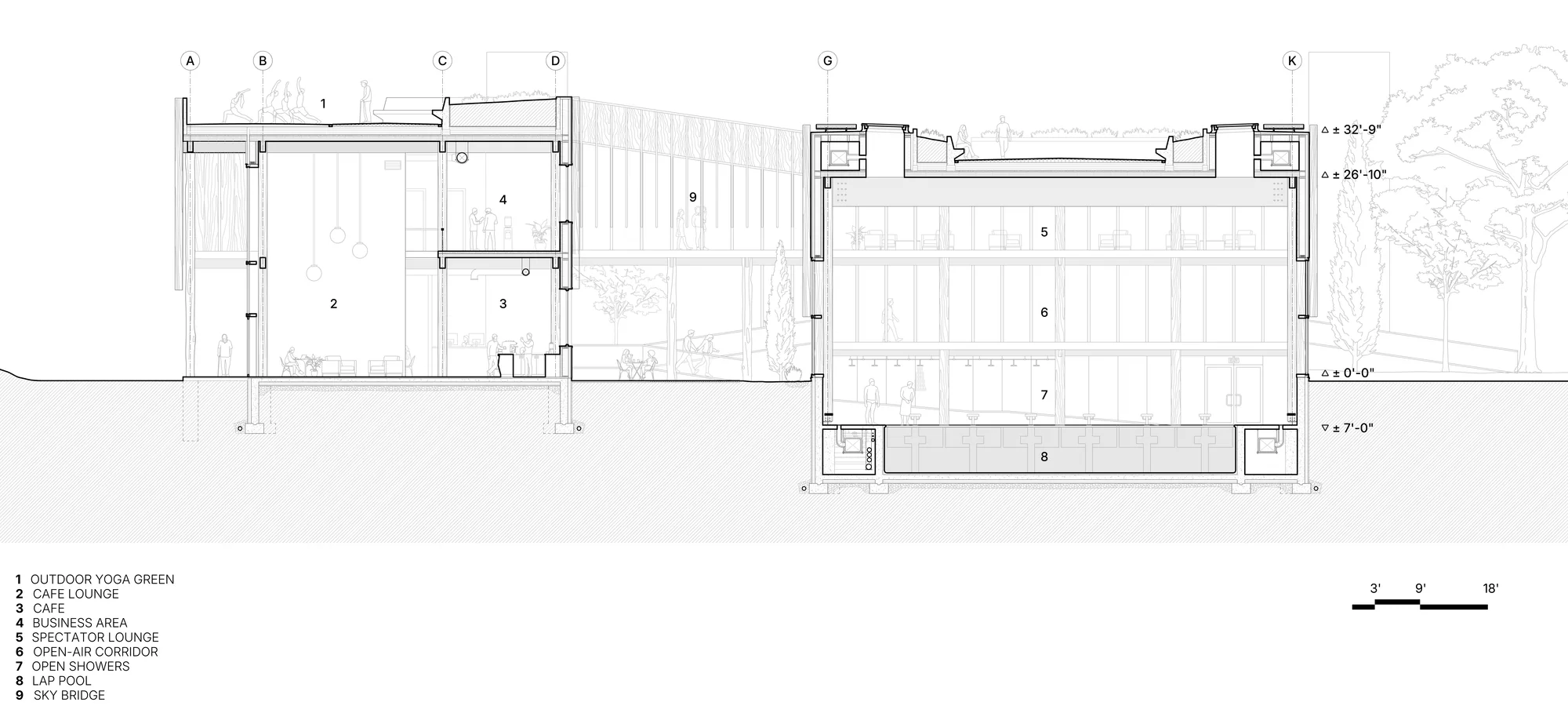

Wood Street Pool, Short Section by Andrew Wheat
Wood Street Pool, Short Section
